DP3

Digital Podium

YOU WILL EXPERIENCE A UNIQUE PERFORMANCE WITH EVERY INTERACTION

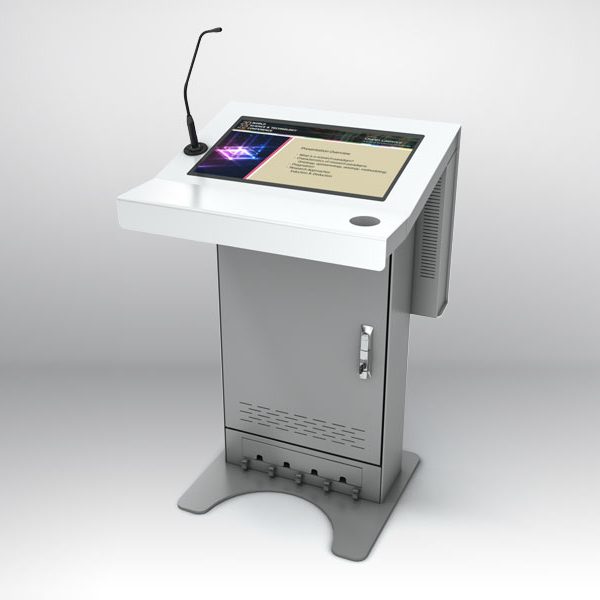

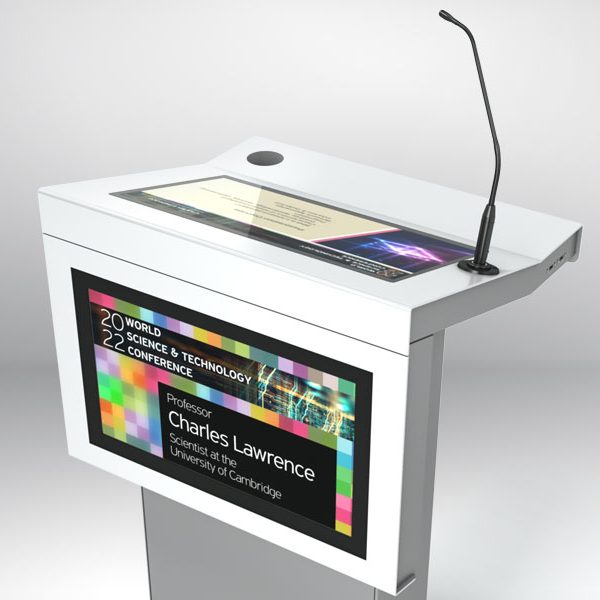

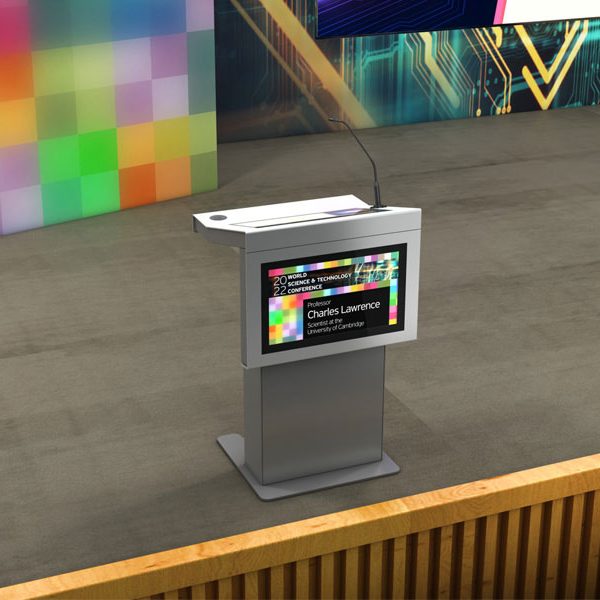

The Cletech DP3 Digital Podium is designed for use in indoor stages. This product, which has all the equipment and features that a speaker needs, also allows to inform the audience. The digital podium, which has a 24″ touch screen on the speaker side, also has a 24″ screen that can be remotely controlled on the audience side.

You Will Find Suitable Solutions to
Your Different Scenario Needs

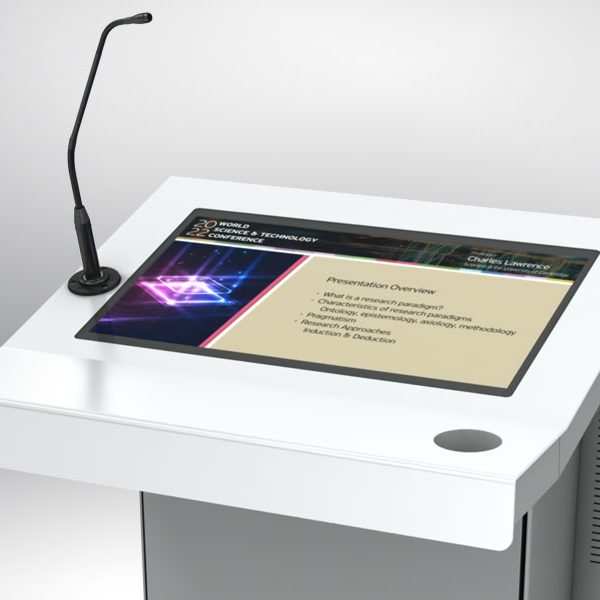

The speaker screen is offered with a Windows-based PC. It allows to project from the screen that also includes a smart board and presentation software to a projection or other display device. In addition, thanks to the many input and output ports (USB, HDMI in-out, LAN), you can also find solutions to your different scenario needs. On the speaker side there is also a cup holder and a Shure Gooseneck Condenser professional microphone.

If you want, you can integrate all these features into your professional audio and video systems or use them alone in your stages.

KET FEATURES

  • Aluminum Main Chassis
  • Samsung Professional Monitors
  • Shure Professional Microphone
  • Multiple Input Output Features
  • MagicInfo CMS
  • Smart Board and Presentation Software

RESOURCES

MONITOR SPECIFICATIONS
AUDIENCE DISPLAY SPEAKER DISPLAY
Monitor Samsung QB24R Samsung QB24R-T
Display Size 24" 24"
Type ADS ADS
Resolution Full HD (1920x1080) Full HD (1920x1080)
Active Area (mm) 527.04 x 296.46 527.04 x 296.46
Brightness 250 Nit 250 Nit
Contrast 1000:1 1000:1
Viewing Angle 178/178 178/178
Response Time 14 ms. 14 ms.
Display Colors 16.7 Million 16.7 Million
Color Gamut %72 %72
Operation Hour 16/7
Speaker 5 Watt
Inputs 1xHDMI 1.4, 1xHDCP 2.2, 1xUSB 2.0
Outputs Stereo Mini Jack, Touch Output (QB24R-T)
External Control RS232C, Rj45
Power Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Max.) 38.5 Watt/Hour 38.5 Watt/Hour
Power Consumption (Nor.) 25 Watt/Hour 28 Watt/Hour
Power Consumption (Typical) 35 Watt/Hour 35 Watt/Hour
Operating Temperature 0°C~ 40°C 0°C~ 40°C
Humidity %10~80 %10~80
Dimension (mm) 547.9x334.4x31.8 547.9x334.4x34.6
Package Dimension (mm) 620x419x122 620x419x122
Weight 3 kg. 3 kg.
Package Weight 4.1 kg 4.1 kg
Bezel Width 17.9 mm (T/B), 9.4 mm (L/R) 17.9 mm (T/B), 9.4 mm (L/R)
VESA Mount 100x100 mm 100x100 mm
Touch No 10 Touch Points
Features Built-in MagicInfo S6, SSSP 6.0, H/W : Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping),
Built in Speaker(5W 1ch), IP5x Rating, Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI,
Button Lock, Hot key option, Plug&Play (Initial Setting)
Processor Cortex A72 1.7GHz Quad-Core CPU
Cache Memory L1 Instruction Cache: 48KB, L1 Data Cache: 32KB, L2 Cache: 2MB
Memory 2.5GB, LPDDR4 1.5GHz 64bit
Graphics Graphic Resolution: 1920x1080 Output Resolution: 3840x2160
Storage 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Operating System Tizen 4.0 (VDLinux)
COMPUTER SPECIFICATIONS
Processor Intel® Core™ i5-9400, 2.90 GHz, 6 Cores
Chipset Intel® H310 Express
Memory 4GB DDR4 2400MHz
Storage 120GB SSD
I/O 4xUSB 2.0, 4xUSB 3.0, 2x COM Port, 2xRJ45, 1xHDMI, 2xDisplay Port, 1xAudio-Out, 1xAudio-In
Network 10/100/1000 Gigabit LAN, WiFi Wireless Network
Case Ultra Mini ITX
Power 90W 19V Adapter
Dimensions 195 x 170 x 45mm
Operating System Windows 10 Pro 64 Bit
MICROPHONE SPECIFICATIONS
Brand/Model Shure CVG18S-B/C, 18" 45,7 cm Gooseneck Condenser Microphone, Mute Button, LED Light, Cardioid, Black
Cartridge Type Electret Condenser
Frequency Response 70–16000 Hz
Polar Pattern Cardiod
Output Impedance 180 Ω
Sensitivity –33 dBV/Pa[1] (22 mV)
Maximum SPL 120 dB SPL
Signal to Noise Ratio 67 dB
Dynamic Range 93 dB
Self Noise 27 dB SPL
Common Mode Rejection >45 dB
Preamplifier Output Clipping Level −7 dBV
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements 11–52 V DC[4], 2.0 mA
HOUSING SPECIFICATIONS
Material Lightweight Aluminum and Steel Body Parts
Paint Scratch More Resistant Electrostatic Powder Coating
Fixing Ground Connection Holes in Cabin
Housing Dimensions 700x1098x611 mm (WxDxH), 95 kg
Packaged Dimensions 800x1250x700 mm (WxDxH), 165 kg
I/O Ports 1 x Switched Main Power Input, 1 x 3-Pin XLR Microphone Out, 3 x USB (Speaker Display), 1 x USB (Front Display),
1 x Rj45, 1 x HDMI Out (Speaker Display), 1 x HDMI In (Front Display)
Power AC 110-240 V - 50/60 Hz
Power Consumption ≤ 210 Watt

TitleDescriptionSizeDate addedDownload
DP3 Digtal Podium Datasheet 656.11 KB27-04-2022 Download
DP3 Digtal Podium Dimensions Technical Drawing35.69 KB18-11-2021 Download

Color Code: WSB

White & Silver

Color Code: SBB

Silver & Black

Color Code: CBB

Bronze & Black

Color Code: BBB

Full Black

Color Code: SAB

Silver & Anthracite

Color Code: WWB

Full White
