M5D
OUTDOOR

Digital Signage
Totem Enclosure

IP56 RATED
DOUBLE SIDED
OUTDOOR TOTEM
ENCLOSURE

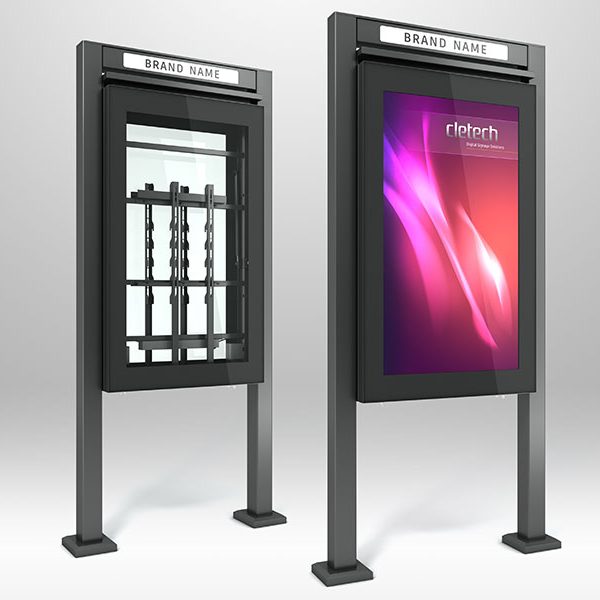

Cletech M5D Series Double-Sided Totem Enclosure is the solution you are looking for with superior features and affordable prices. With a two-legged design structure, the ground connection is minimized, and wind resistance is reduced.

It is designed to run smoothly in all weather conditions and is resistant to dust, moisture, extreme heat, or extreme cold. It is constructed from galvanized coated sheet steel and has an electrostatic powder coating. 8 mm “extra clear” glass was used on the surfaces in front of the screen against the vandalism and damage common in outdoor environments. It can also be ordered with anti-reflective glass on request.

FULL COMPATIBILITY

It is fully compatible with many original monitors, mainly Samsung, LG, Philips, NEC, DynaScan. Thanks to VESA layout, totem is ideal for both professional and commercial displays. It offers easy service and maintenance and is secured with four- point front cover lock system. It has free air intake with filters and powerful output fans that can operate 24/7 for air conditioning. In addition, ventilation in the enclosure is supported by aluminum heaters with thermostats as an optional.

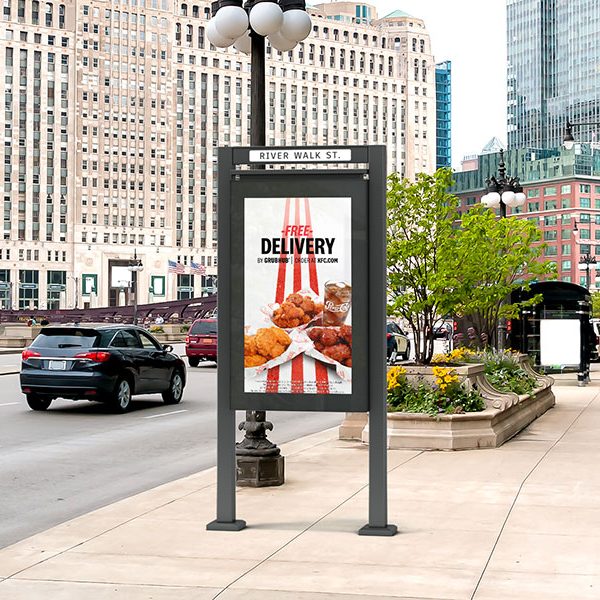

Audiences are being informed all about products and services with Cletech Digital Signage Enclosure that provides 24/7 digital advertising. Double sided M5D Outdoor model is suitable for areas where it can be viewed from both front and back.  It generates a high-impact impression with its stylish design as well as its functional and practical features. Cletech M5D Outdoor can be used as a stand-alone, located in special projects, used in public transportation stops, information points or in the city centers as Ad Media with LED Illuminated Brand or name area. M5D Outdoor Totem Enclosure is available in sizes 43″, 46”, 49”, 55”, 65” and 75″. As with all Cletech products, optional changes and colour changes can be applied that enhance your facility branding.

KEY FEATURES

  • High Durability EBM-Papst Brand Fans

  • Filtered Air Inlets

  • Heaters with Thermostat (optional)

  • LED Illuminated Lightbox

  • High Quality Finishes

  • Easy Access for Maintenance

  • 8mm Ceramic Painted Tempered Glass

  • Available for Floor Mounts

  • Easy Monitor-TV Mounting

OPTIONS

Available
Not Available
Included
On Project
null
Custom
Color
null
Client
Logo
null
Billboard
Back Cover
null
Floor
Mounts
null
Base
Wheels
null
Wall
Mounts
null
Ceiling
Mounts
null
Base
Feets
null
Tempered
Glass
null
Touch
Screen
null
Fans for
Ventilation
null
Power
Distribution Unit
null
Single
Face
null
Double
Face
null
Lockable
Cover
null
Monitor & PC
VESA Mounting

RESOURCES

Monitor Enclosure Package
Display (inch) Mountable Max. Monitor Dimension (mm) Dimension without Flange (mm) Dimension with Flange (mm) Weight (kg) Viewing Area (mm) Dimension (mm) Weight (kg)
43" 975x565x100 2136x922x240 2136x1027x205 89 941x529 2200x1200x400 140
46" 1075x625x100 2208x959x240 2208x1064x205 95 1018x573 2250x1250x400 145
49" 1110x650x100 2263x990x240 2263x1095x205 101 1074x604 2350x1300x400 155
55" 1240x725x100 2400x1069x240 2400x1174x205 115 1210x680 2500x1400x400 170
65" 1460x850x100 2617x1190x240 2617x1295x205 128 1428x803 2700x1500x450 185
75" 1682x975x100 2650x1319x240 2650x1424x205 150 1650x928 2800x1600x450 220
M5 Landscape M5 Portrait M5B Landscape M5B Portrait M5C Portrait M5D Landscape M5D Portrait F9 Portrait FX Portrait
LG
49XS4J-B W/O Handle Compatible W/O Handle Compatible W/O Handle W/O Handle Compatible Compatible Customized
49XS4F-B W/O Handle Compatible W/O Handle Compatible W/O Handle W/O Handle Compatible Compatible Customized
49XS2E W/O Handle Compatible W/O Handle Compatible W/O Handle W/O Handle Compatible Compatible Customized
55XS4J-B W/O Handle Compatible W/O Handle Compatible W/O Handle W/O Handle Compatible Compatible Customized
55XS4F-B W/O Handle Compatible W/O Handle Compatible W/O Handle W/O Handle Compatible Compatible Customized
55XS2E W/O Handle Compatible W/O Handle Compatible W/O Handle W/O Handle Compatible Compatible Customized
75XS4G Compatible W/O Handle Compatible W/O Handle W/O Handle Compatible W/O Handle Compatible Customized
75XS2E Compatible W/O Handle Compatible W/O Handle W/O Handle Compatible W/O Handle No Customized
49XF3E-B Customized Customized Customized Customized Customized Customized Customized No Customized
55XF3E-B Customized Customized Customized Customized Customized Customized Customized No Customized
75XF3C-B Customized Customized Customized Customized Customized Customized Customized No Customized
75XF3ES-B Customized Customized Customized Customized Customized Customized Customized Customized Customized
SAMSUNG
OM46N Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
OM46B Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
OM55N Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
OM55N-S Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
OM55B Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
OM75R Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
OM75A Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
PHILIPS
55BDL3002H Customized Customized Customized Customized Customized No No No No
55BDL3102H Customized Customized Customized Customized Customized No No No No
55BDL3202H Customized Customized Customized Customized Customized No No No No
75BDL3003H Customized Customized Customized Customized Customized No No No No
55BDL6002H Customized Customized Customized Customized Customized No No No No
DYNASCAN
DS323LT4 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS371BT4 Customized Customized Customized Customized Customized Customized Customized Customized Customized
DS431LT4 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS491LT4 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS491LT4-M Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS491LT6 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS552LT4-1 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS552LT4-M Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS552LT5 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS552LT5-1 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS552LT6-1 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible
DS653LT5 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Customized
DS752LR4 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Customized
DS752LT5 Compatible Compatible Compatible Compatible Compatible Compatible Compatible Compatible Customized
DS861LR4 Customized Customized Customized Customized Customized Customized Customized Customized Customized
