X02

Digital Signage
Totem Enclosure

READY FOR DIFFICULT INDOOR TASKS



Cletech X02 is an ideal product for areas where it is difficult to be fixed to the floor and where extra flange protrusions are not required. It is an ideal project product, especially for areas where people are more densely, such as airports, subways, shopping malls.

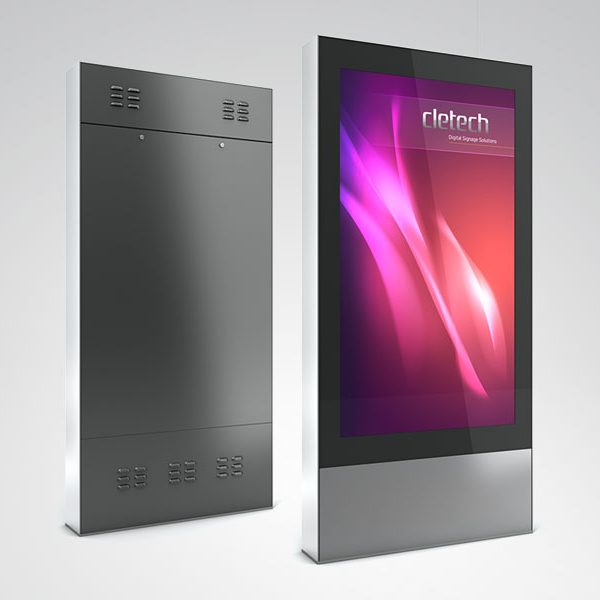

Thanks to the removable rear service cover, it provides easy rear service even in very tight spaces. The product with an aluminum mainframe is compatible with many monitors and televisions of VESA standards. Ventilation fans and PDUs are offered as standard in the product in accessories. All metal surfaces are painted with electrostatic powder coating. In addition to standard colors, it can also be optionally painted with RAL colors.

KEY FEATURES

  • High Quality Finishes

  • Easy Access for Maintenance from Back Cover

  • Ceramic Painted Tempered Glass

  • Easy Monitor-TV Mounting

  • Lockable Back Covers

  • 4mm Ceramic Painted Tempered Glass

OPTIONS

Included
Optional
On Project
Not Available
null
Custom
Color
null
Floor
Mounts
null
Base
Feets
null
Touch
Screen
null
Power
Distribution Unit
null
Client
Logo
null
Base
Wheels
null
Tempered
Glass
null
Fans for
Ventilation
null
Lockable
Cover

RESOURCES

Monitor Enclosure Package
Display (inch) Mountable Max. Monitor Dimension (mm) Dimension (WxHxD) (mm) Weight (kg) Viewing Area (WxH) (mm) Dimension (WxHxD) (mm) Weight (kg)
49" 645x1115x100 748x2023x190 125 604x1074 2100x910x230 150
50" 655x1135x100 748x2023x190 125 616x1096 2100x910x230 150
55" 720x1250x100 862x2023x190 132 680x1210 2100x1020x230 160
65" 845x1470x100 986x2023x190 145 804x1428 2100x1150x230 175
75" 970x1690x100 1110x2144x190 159 928x1650 2250x1270x230 190
85" 1095x1910x100 1240x2300x190 210 1053x1872 2400x1400x230 240
98" 1255x2200x100 1397x2600x190 280 1214x2159 2700x1560x230 325

Colour Code: BBB

Black Frame
Black Glass
Black Body Parts

(Standard Colour)

Colour Code: SBB

Silver Frame
Black Glass
Black Body Parts

(Standard Colour)

Colour Code: WBB

White Frame
Black Glass
Black Body Parts

(Standard Colour)
