Z01

Digital Signage
Totem Enclosure

THIS IS
THE DIGITAL SIGNAGE
SOLUTION YOU’RE LOOKING FOR

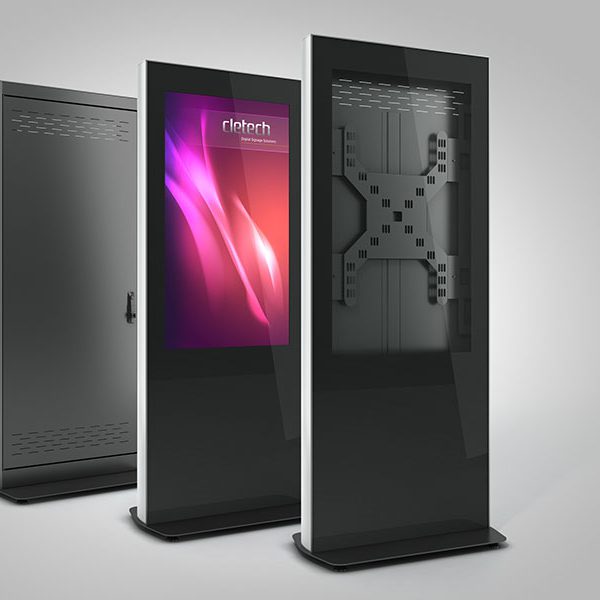

Elegantly designed Cletech Z01 series Enclosures allows to deliver key messages to the audience. It is an aesthetic and stylish product with features such as an aluminum body structure with electrostatic powder coating, locked back cover with venting holes, adjustable foot system, 4 mm ceramic painted tempered glass front surface. The product can be ordered with standard feet or wheels according to the area where it is located. In addition, it can be fixed to the floor by using the connecting areas in the cabinet, and thus security can be increased.

DIFFERENT SCREEN SIZE OPTIONS

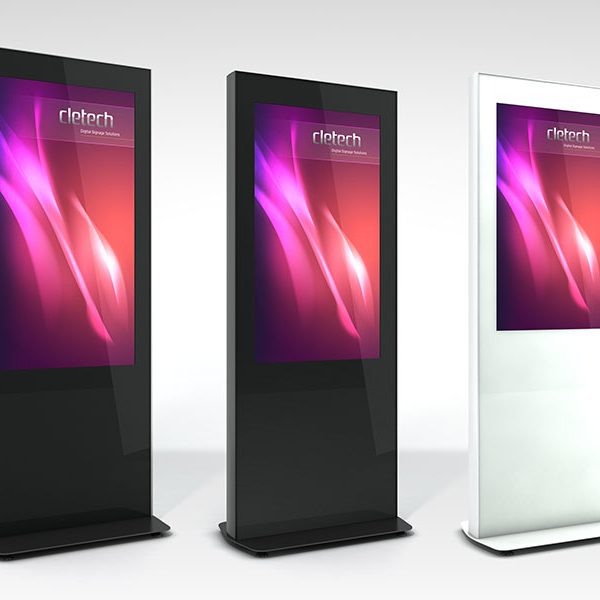

The Cletech Z01 Totem Enclosure is manufactured as standard in 32″, 43″, 49″, 55″, 65″ and 75″ sizes. The screen that best suits your requirements can be selected according to needs and budget. TV or professional monitor can easily be mounted via Vesa Compliant mounting solutions. It eliminates extra costs thanks to the advantage of easy assemble and quick maintenance.

Z01 Series Digital Signage Enclosure can offer tailor-made solutions to your special projects such as adding a touch screen, camera, sensor, or printer. Mostly, a ventilation system does not be needed for indoor digital signage because they are located at places that have an ambient temperature. Z01 Series Enclosure gives an opportunity to add fans if extra ventilation is required.

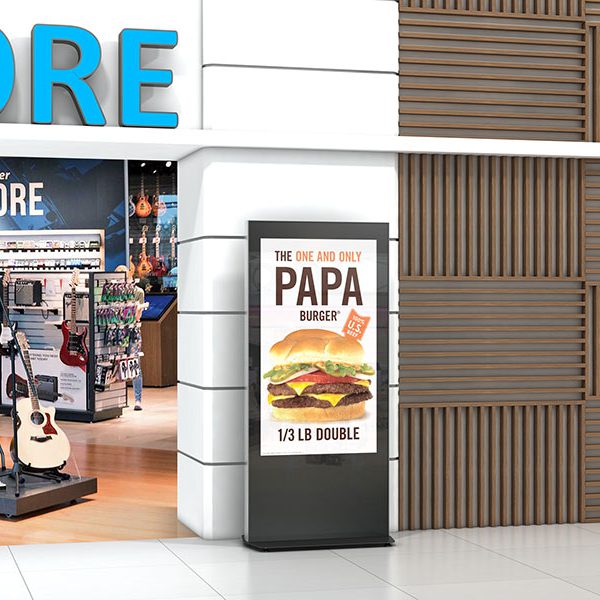

In this product, which we also offer the possibility to customize, you can also order different color combinations besides standard color options. You can apply your corporate logo to the product or change its size for private projects. Z01 Series indoor display enclosures are designed for prestigious locations such as meeting rooms, theatres, museums, stores, banks. They are remarkable in the crowd and ideal for wayfinding or advertising. It is a cost-effective way to increase brand awareness and reach potential customers.

KEY FEATURES

  • High Quality Finishes

  • Easy Access for Maintenance

  • 4mm Ceramic Painted Tempered Glass

  • Available for Floor Mounts

  • Easy Monitor-TV Mounting

  • Aluminum Main Chasis

OPTIONS

Available
Not Available
Included
On Project
null
Custom
Color
null
Client
Logo
null
Billboard
Back Cover
null
Floor
Mounts
null
Base
Wheels
null
Wall
Mounts
null
Ceiling
Mounts
null
Base
Feets
null
Tempered
Glass
null
Touch
Screen
null
Fans for
Ventilation
null
Power
Distribution Unit
null
Single
Face
null
Double
Face
null
Lockable
Cover
null
Monitor & PC
VESA Mounting

RESOURCES

Monitor Enclosure Package
Display (inch) Mountable Max. Monitor Dimension (mm) Dimension without Flange (mm) Dimension with Flange (mm) Weight (kg) Viewing Area (mm) Dimension (mm) Weight (kg)
32" 430x730x55 572x1844x100 593x1844x400 56 393x698 1930x655x150 60
43" 565x975x55 708x1944x100 729x1944x450 66 529x941 2030x790x150 72
49" 650x1110x55 783x1944x100 804x1944x450 69 604x1074 2030x870x150 75
50" 655x1135x55 795x1944x100 816x1944x450 70 616x1096 2080x900x150 77
55" 725x1240x55 859x2044x100 892x2044x500 82 680x1210 2130x945x150 89
65" 850x1460x55 982x2144x100 1003x2144x550 97 803x1428 2230x1065x150 105
75" 965x1685x55 1107x2194x100 1128x2194x550 126 928x1650 2280x1190x150 135

Colour Code: SBB

Silver Frame
Black Glass
Black Body Parts

(Standard Colour)

Colour Code: BBB

Black Frame
Black Glass
Black Body Parts

(Standard Colour)

Colour Code: WWW

White Frame
White Glass
White Body Parts

(Extra Charged Colour)
