THE ENCLOSURE SOLUTION YOU ASK FOR FULL OUTDOOR MONITORS

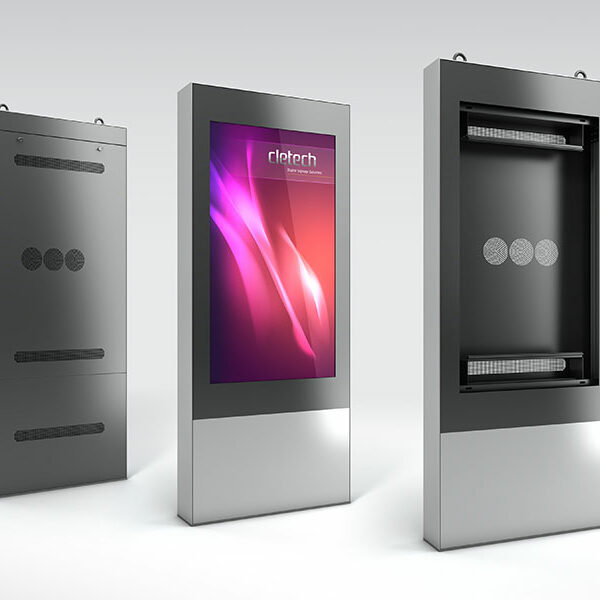

The Cletech XR Totem Enclosure was developed for Samsung and LG Full Outdoor Monitors. Designed in full compliance with Samsung OHF, OHB, OHA and OHN series and LG XE4F-M series, our product will meet your outdoor needs. The XR Totem becomes the face of the city with its functionality and aesthetic features and is also manufactured to withstand harsh outdoor weather conditions. Enclosure structure based on aluminum main chassis and steel sheets used on metal surfaces are made of galvanized material, coated with zinc-based primer and then painted with outdoor compatible electrostatic paint.
It can be produced either landscape or portrait. There is an extra box with an IP 56 rating in the enclosure. You can provide both electrical controls from here and connect your Mini PC or Media Player here. There are steel eyebolts that you can use to facilitate your installation on the enclosure. The back covers can be locked from a double point.
KEY FEATURES
High Quality Finishes
Compatible for Full Outdoor Monitors
IP Rated Box for Mini PC - Media Player
Easy Access for Maintenance
Available for Floor Mounts
Easy Monitor Mounting
Lockable Back Covers
OPTIONS
RESOURCES
| Monitor | Enclosure | Package | ||||
|---|---|---|---|---|---|---|
| Display (inch) | Mountable Max. Monitor Dimension (mm) | Portrait / Landscape Dimension (WxHxD) (mm) | Weight (kg) | Viewing Area (WxH) (mm) | Portrait / Landscape Dimension (WxHxD) (mm) | Weight (kg) |
| 46" | 630x1100x130 | 756x2023x190 / 1318x1800x190 | 93 | 573x1018 | 756x2023x190 / 1318x1800x190 | 98 |
| 49" | 660x1200x130 | 787x2023x190 / 1374x1800x190 | 98 | 604x1074 | 787x2023x190 / 1374x1800x190 | 103 |
| 55" | 740x1300x130 | 863x2023x190 / 1510x1800x190 | 105 | 680x1210 | 863x2023x190 / 1510x1800x190 | 110 |
| 75" | 1060x1800x130 | 1111x2350x190 / 1950x1950x190 | 130 | 928x1650 | 1111x2350x190 / 1950x1950x190 | 136 |
| 85" | 1200x2050x130 | 1236x2550x190 / 2175x2000x190 | 165 | 1053x1872 | 1236x2550x190 / 2175x2000x190 | 172 |
| Title | Description | Size | Date added | Download |
|---|---|---|---|---|
| XR Totem Enclosure for Outdoor Monitors | 1.44 MB | 13-03-2023 | Download | |
| XR 46" Portrait Totem Dimensions for Samsung OH46F / OH46B | 61.02 KB | 26-03-2024 | Download | |
| XR 55" Portrait Totem Dimensions for Samsung OH55F - OH55A | 41.70 KB | 13-03-2023 | Download |
Colour Code: SBB
Silver Side Frame
Black Front Frame
Black Covers
(Standard Colour)
Colour Code: BBB
Black Side Frame
Black Front Frame
Black Covers
(Standard Colour)
Colour Code: ASB
Anthracite Side Frame
Black Front Frame
Anthracite Covers
(Standard Colour)
